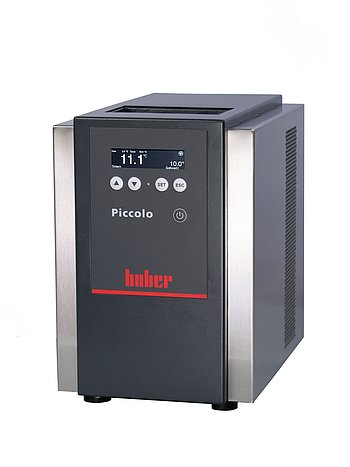

Piccolo 280 OLÉ

Ultra-compact laboratory chiller with peltier technology

Model: Piccolo 280 OLÉ Group: 3 Order No.: 3044.0002.98 E-class: 32-09-01-18 Price: 5,550 USD

Functions Technical data Downloads Warranty extension

Performance Characteristics

Ultra-compact, easy to handle and versatile – the new Piccolo chiller convinces entirely with state-of-the-art thermoelectric Peltier technology. This technology enables accurate and rapid heating or cooling, entirely without refrigerant, which is a clear benefit for the environment. Furthermore this model is maintenance-free.
The new Piccolo is extremely versatile, for example in analysis, quality control, research laboratory, and material tests.
Thanks to modern fan technology, the Piccolo chiller is extremely quiet in operation and hardly requires any floor space. The device impresses with small dimensions, but also with low weight and intuitive operation via the new OLÉ controller.
Equipped with OLED display, USB and RS232 interface, the Piccolo is also capable of demanding tasks.

Functions overview

Modern Peltier technology

Extremely quiet operation

Ultra-compact and light-weight

No refrigerant, maintenance-free

Environmentally-friendly

Easy to fill and empty

Bright, large OLED display

Simple operation with menu navigation

USB and RS232 interfaces

Product impressions

Controller

The new OLÉ controller combines state-of-the-art technology with simple operation. OLÉ models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment.

Temperature range	4...70
Temperature stability	±0,2
Temperature display	OLED Display
Display resolution	0,1 K
Alarm message	optic, acoustic
Controller	OLÉ
Safety class	I / NFL
Protection class	IP20
Dimensions (W x D x H)	215 x 310 x 312 mm
Weight, net	13 kg

Cooling capacity

20	0,28
10	0,1
4	0,03
°C	kW

Refrigeration machine

air-cooled

Delivery capacity pressure pump max.	1,85 l/min; 0,95
Pump connection	Connector with hose barb
Pump speed adjustable	no
Pump type	Pressure pump
Pump characteristics	Pressure pump, speed not variable

Interface digital

USB (Device), RS232 Interface

Permissible ambient temperature	5...40 °C
Sound pressure level	60
Filling volume min.	0,1
Power supply	100-240V 1~/2~ 50/60Hz
Current consumption max.	4,5

Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.

Please observe the notes on installation and/or the space requirements of our products.

The following voltage and frequency tolerances apply based on EN60034-1:
Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%

Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.

We reserve the right to make technical changes and correct errors. Illustrations can deviate from the original.
