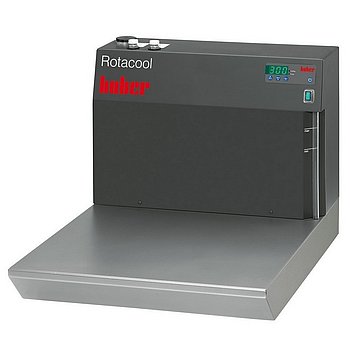

RotaCool

Chiller for rotary evaporators

Model: RotaCool Group: 3 Order No.: 3033.0007.99 E-class: 32-09-01-18 Price: 9,830 USD

Functions Technical data Downloads Warranty extension

Performance Characteristics

This chiller is unique on the global market due to its space saving L-form. The additional space required on the laboratory table is zero! Abracadabra: placed on rotary evaporator the RotaCool virtually disappears completely. The RotaCool is a product to provide a dedicated cooling service to all small bench top Rotary Evaporators.

Functions overview

Solution for cooling of rotary evaporators

Compact, space-saving design

Additional extension plate

Ideal for conventional rotary evaporators

Robust stainless steel construction

Easy operation with only three keys

LED temperature display

Product impressions

Temperature range	-10...40
Temperature stability	±1
Temperature display	LED Display
Alarm message	optic, acoustic
Controller	MPC
Safety class	I / NFL
Protection class	IP20
Dimensions (W x D x H)	470 x 580 x 402 mm
Weight, net	32 kg

Cooling capacity

15	0,42
0	0,35
-10	0,22
°C	kW

Refrigeration machine

air-cooled, natural refrigerant

Refrigerant 1st stage

R-290 (A3, H220)

Refrigerant quantity 1st stage

0,07 kg

Delivery capacity pressure pump max.	14 l/min; 0,25
Delivery capacity suction pump max.	10,5 ; 0,17 bar
Pump connection	M16x1 AG male
Pump speed adjustable	no
Pump type	Yes
Pump characteristics	Pressure and suction pump, speed not variable

Permissible ambient temperature	5...40 °C
Sound pressure level	59
Filling volume min.	1,5
Expansion volume	1
Power supply	208-240V 1~/2~ 50/60Hz
Current consumption max.	3,5

Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.

Please observe the notes on installation and/or the space requirements of our products.

The following voltage and frequency tolerances apply based on EN60034-1:
Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%

Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.

We reserve the right to make technical changes and correct errors. Illustrations can deviate from the original.
