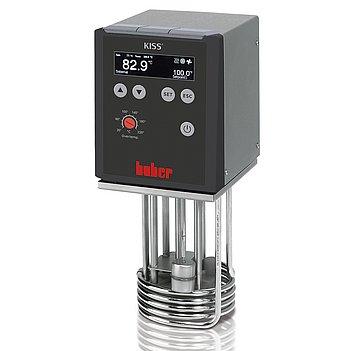

Immersion thermostat

Model: KISS E Group: 1 Order No.: 2035.0013.98 E-class: 32-09-01-14 Price: 1,900 USD
Request now

Performance Characteristics

Immersion thermostats are suitable for controlling the temperature of any bath as the screw clamp allows the thermostats to be easily mounted on different vessels. Minus temperatures are achieved in combination with a refrigerated bath or immersion cooler. All models are fitted with a powerful pressure/suction pump and meet the requirements of Safety Class III (FL) for use with flammable fluids. A pump adapter for external temperature control and cooling coils for a cooling water connection are available as accessories.

Functions overview

  • KISS temperature controller
  • Bright, large OLED display
  • Simple operation with menu navigation
  • Simultaneous display of setpoint, Tmin, Tmax and actual temperature
  • Status displays for pump, cooling and heating
  • Overtemperature and low level protection
  • Safety class III/FL (DIN 12876)
  • USB and RS232 interfaces
  • Autostart function for power failure
  • 3 colour versions available: grey (standard), blue, red

Product impressions

Controller

The new KISS controller combines state-of-the-art technology with simple operation and stylish design. KISS models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).

Read more

Temperature range 25...200
with cooling unit -30...200
with water cooling 20...200
Temperature stability ±0,05
Temperature display OLED Display
Alarm message optic, acoustic
Controller KISS
Safety class III / FL
Protection class IP20
Dimensions (W x D x H) 132 x 163 x 312 mm
Weight, net 4 kg

Heating capacity 1 - 1,5

Delivery capacity pressure pump max. 14 l/min; 0,25
Delivery capacity suction pump max. 10,5 ; 0,17 bar
Pump connection M16x1 AG male (Option, #19606)
Pump speed adjustable no
Pump characteristics Pressure and suction pump, speed not variable

Interface digital USB (Device), RS232 Interface

Permissible ambient temperature 5...40 °C
Power supply 100-115V 1~ 50/60Hz
Current consumption max. 15

Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.

Please observe the notes on installation and/or the space requirements of our products.

The following voltage and frequency tolerances apply based on EN60034-1:
Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%

Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.

We reserve the right to make technical changes and correct errors. Illustrations can deviate from the original.

Accessories

PT100 Sensor connection for KISS

Polycarbonate bath 130A

Polycarbonate bath 112A

Polycarbonate bath 118A

Polycarbonate bath 106A

Polycarbonate bath 108A

Polycarbonate bath 110A

Ball valve M16x1

Control cable RS232 (9 <> 9 pin), 3m

Stand for KISS E, CC-E

Hose, pressureless, FKM-200-NW12

Hose, pressureless, PVC-60-NW12

Hose, pressureless, PVC-60-NW8

Hose, pressureless, NBR NW12

Hose, pressureless, NBR NW8

Hose, pressureless, S-180-NW12

Hose, pressureless, S-180-NW8

Hose, pressureless, FKM NW8

Insulated sleeving / f. tube NW12

Insulated sleeving

Drain hose, pressureless, T-180-NW8

Drain hose, pressureless, T-180-NW12

Hose MT-200-1-M16x1

Hose MT-200-1,5-M16x1

Hose MT-200-2-M16x1

Hose MT-200-3-M16x1

Hose MT-350-3-M16x1

Hose MT-350-1-M16x1

Hose MT-350-1,5-M16x1

Hose MT-350-2-M16x1

Insulated sleeving internal-Ø 42mm

Insulated sleeving/price per m D:15

Heat transfer fluid M10.120.08

Heat transfer fluid M10.120.08

Heat transfer fluid M90.055/170.02

Heat transfer fluid M90.055/170.02

Heat transfer fluid M80.100/250.03

Heat transfer fluid M80.100/250.03

Heat transfer fluid P20.190.40

Heat transfer fluid P20.190.40

Heat transfer fluid P20.225/275.50

Heat transfer fluid P20.225/275.50

Heat transfer fluid M20.195/235.20

Heat transfer fluid M20.195/235.20

Heat transfer fluid M40.165/220.10

Heat transfer fluid M40.165/220.10

Heat transfer fluid M60.115/200.05

Heat transfer fluid M60.115/200.05

Heat transfer fluid M80.055.03

Heat transfer fluid M80.055.03

Heat transfer fluid MEG

Heat transfer fluid MEG

Screw clamp for KISS E, CC-E

Adapter M16x1 f- M24x1,5 m

Adapter M16x1 f- R 1/2 f

Adapter M16x1 f - M16x1 f

Adapter M16x1 f - R1/2 m

Adapter M16x1 f - G3/4 f

Adapter M16x1 f - M30x1,5 m

Welding end M16x1

90° Adaptor M16x1 female - M16x1 male

Hose connector M16x1, NW 8

Hose connector M16x1, NW 12

Pump discharge pipe (for diverting flow in bath) for bath thermostats with KISS E, CC-E

Securing nut M16x1

Blank plug for M16x1

Micro hose connector NW 3.2 / M16x1

Pump adaptor cpl.

Pump adaptor cpl.

Algae protection 0,1 ltr

Factory calibration certificate – temperature stability to DIN 12876

Testing protocol FAT (Final Acceptance Test

Factory calibration certificate – absolute accuracy

Colour set RED for KISS Circulators

Colour set BLUE for KISS Circulators
