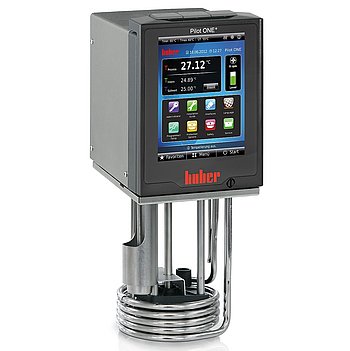

Immersion thermostat

Model: CC-E Group: 1 Order No.: 2000.0023.01 E-class: 32-09-01-14 Price: 3,190 USD
Request now

Performance Characteristics

Immersion thermostats are suitable for controlling the temperature of any bath as the screw clamp allows the thermostats to be easily mounted on different vessels. Minus temperatures are achieved in combination with a refrigerated bath or immersion cooler. All models are fitted with a powerful pressure/suction pump and meet the requirements of Safety Class III (FL) for use with flammable fluids. A pump adapter for external temperature control and cooling coils for a cooling water connection are available as accessories.

Functions overview

  • Pilot ONE controller with Plug & Play technology
  • Precise temperature control
  • 5.7“ touchscreen and comfortable menu navigation
  • Overtemperature and low level protection
  • Safety class III/FL (DIN 12876)
  • Powerful pressure/suction pump
  • Programmer with calendar and clock functions
  • 2-point calibration
  • RS232 interface and Pt100 connection

Product impressions

Controller

The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

Read more

Temperature range 25...200
with cooling unit -30...200
with water cooling 20...200
Temperature stability ±0,01
Controller Pilot ONE
Safety class III / FL
Protection class IP20
Dimensions (W x D x H) 132 x 159 x 315 mm
Weight, net 4 kg

Heating capacity 1,5 - 2,1

Delivery capacity pressure pump max. 27 l/min; 0,7
Delivery capacity suction pump max. 22 ; 0,4 bar
Pump connection M16x1 AG male (Option, #19606)
Pump speed adjustable Yes
Pump characteristics Pressure and suction pump, variable speed

External sensor connection Pt100
Interface digital Ethernet, USB (Host u. Device), RS232

Permissible ambient temperature 5...40 °C
Power supply 200-240V 1~/2~ 50/60Hz
Current consumption max. 10

Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.

Please observe the notes on installation and/or the space requirements of our products.

The following voltage and frequency tolerances apply based on EN60034-1:
Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%

Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.

We reserve the right to make technical changes and correct errors. Illustrations can deviate from the original.

Accessories

Temperature sensor PT100, open, Ø 8 mm, 170 mm

Temperature sensor PT100, closed, Ø 8 mm, 400 mm

Temperature sensor PT100, closed, Ø 6 mm, 200 mm

Temperature sensor PT100, closed, Ø 6 mm, 180 mm

Polycarbonate bath 130A

Polycarbonate bath 112A

Polycarbonate bath 118A

Polycarbonate bath 106A

Polycarbonate bath 108A

Polycarbonate bath 110A

...
