KISS 104A

KISS 104A

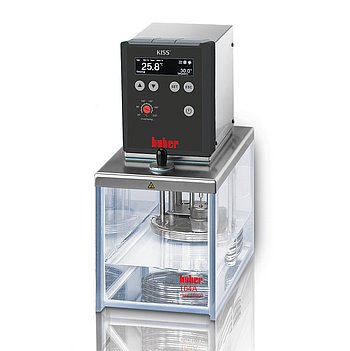

Circulation thermostat with a polycarbonate bath

Model: KISS 104A Group: 1 Order No.: 2037.0041.98 E-class: 32-09-01-13 Price: 2,850 USD
Request now

Performance Characteristics

Heating circulation thermostats are specially designed for temperature control of externally attached applications with a small volume. The units are fitted with bath tanks made of stainless steel or polycarbonate. The thermostats have M16x1 pump connections at the rear side as well as a stainless steel bath cover with a filling opening. All models are fitted with an overtemperature and low level protection system according to safety class III/FL (DIN 12876) for use with flammable fluids. A powerful circulation pump ensures optimal heat transfer to external attached applications.

Functions overview

  • KISS temperature controller
  • Bright, large OLED display
  • Simple operation with menu navigation
  • Simultaneous display of setpoint, Tmin, Tmax and actual temperature
  • Status displays for pump, cooling and heating
  • Overtemperature and low level protection
  • Safety class III/FL (DIN 12876)
  • USB and RS232 interfaces
  • Autostart function for power failure
  • 3 colour versions available: grey (standard), blue, red

Product impressions

Controller

The new KISS controller combines state-of-the-art technology with simple operation and stylish design. KISS models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).

Read more

Temperature range 25...100
with cooling unit 15...100
with water cooling 20...100
Temperature stability ±0,05
Temperature display OLED Display
Alarm message optic, acoustic
Controller KISS
Safety class III / FL
Protection class IP20
Dimensions (W x D x H) 147 x 234 x 329 mm
Weight, net 5 kg

Heating capacity 1 - 1,5

Delivery capacity pressure pump max. 14 l/min; 0,25
Delivery capacity suction pump max. 10,5 ; 0,17 bar
Pump connection M16x1 AG male
Pump speed adjustable no
Pump characteristics Pressure and suction pump, speed not variable

Interface digital USB (Device), RS232 Interface

Permissible ambient temperature 5...40 °C
Bath opening WxD/BD ø = 25 / 150
Bath volume 3
Filling volume min. 2
Power supply 100-115V 1~ 50/60Hz
Current consumption max. 15
Fuse 15 A

Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.

Please observe the notes on installation and/or the space requirements of our products.

The following voltage and frequency tolerances apply based on EN60034-1:
Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%

Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.

We reserve the right to make technical changes and correct errors. Illustrations can deviate from the original.

Accessories

PT100 Sensor connection for KISS

Ball valve M16x1

Cooling coil cpl.

Control cable RS232 (9 <> 9 pin), 3m

Hose, pressureless, FKM-200-NW12

Hose, pressureless, PVC-60-NW12

Hose, pressureless, PVC-60-NW8

Hose, pressureless, NBR NW12

Hose, pressureless, NBR NW8

Hose, pressureless, S-180-NW12

Hose, pressureless, S-180-NW8

Hose, pressureless, FKM NW8

Insulated sleeving / f. tube NW12

Insulated sleeving

Drain hose, pressureless, T-180-NW8

Drain hose, pressureless, T-180-NW12

Hose MT-200-1-M16x1

Hose MT-200-1,5-M16x1

Hose MT-200-2-M16x1

Hose MT-200-3-M16x1

Hose MT-350-3-M16x1

Hose MT-350-1-M16x1

Hose MT-350-1,5-M16x1

Hose MT-350-2-M16x1

Insulated sleeving internal-Ø 42mm

Insulated sleeving/price per m D:15

Heat transfer fluid M90.055/170.02

Heat transfer fluid M90.055/170.02

Heat transfer fluid M80.100/250.03

Heat transfer fluid M80.100/250.03

Heat transfer fluid P20.225/275.50

Heat transfer fluid P20.225/275.50

Heat transfer fluid M20.195/235.20

Heat transfer fluid M20.195/235.20

Heat transfer fluid M40.165/220.10

Heat transfer fluid M40.165/220.10

Heat transfer fluid M60.115/200.05

Heat transfer fluid M60.115/200.05

Heat transfer fluid M80.055.03

Heat transfer fluid M80.055.03

Heat transfer fluid MEG

Heat transfer fluid MEG

Adapter M16x1 f- M24x1,5 m

Adapter M16x1 f- R 1/2 f

Adapter M16x1 f - M16x1 f

Adapter M16x1 f - R1/2 m

Adapter M16x1 f - G3/4 f

Adapter M16x1 f - M30x1,5 m

Welding end M16x1

90° Adaptor M16x1 female - M16x1 male

Hose connector M16x1, NW 8

Hose connector M16x1, NW 12

Pump discharge pipe (for diverting flow in bath) for bath thermostats with KISS E, CC-E

Securing nut M16x1

Blank plug for M16x1

Micro hose connector NW 3.2 / M16x1

Algae protection 0,1 ltr

Factory calibration certificate – temperature stability to DIN 12876

Testing protocol FAT (Final Acceptance Test

Factory calibration certificate – absolute accuracy

Colour set RED for KISS Circulators

Colour set BLUE for KISS Circulators
