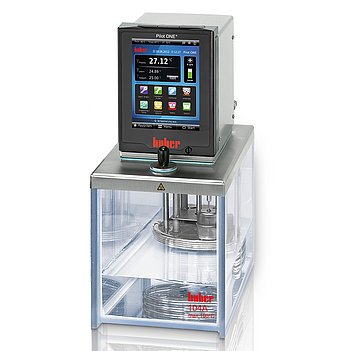

Circulation thermostat with a polycarbonate bath

Model: CC-104A Group: 1 Order No.: 2037.0058.01 E-class: 32-09-01-13 Price: 3,990 USD
Request now

Performance Characteristics

Heating circulation thermostats are specially designed for temperature control of externally attached applications with a small volume. The units are fitted with bath tanks made of stainless steel or polycarbonate. The thermostats have M16x1 pump connections at the rear side as well as a stainless steel bath cover with a filling opening. All models are fitted with an overtemperature and low level protection system according to safety class III/FL (DIN 12876) for use with flammable fluids. A powerful circulation pump ensures optimal heat transfer to external attached applications.

Functions overview

  • Pilot ONE controller with Plug & Play technology
  • Precise temperature control
  • 5.7“ touchscreen and comfortable menu navigation
  • Overtemperature and low level protection
  • Safety class III/FL (DIN 12876)
  • Powerful pressure/suction pump
  • Programmer with calendar and clock functions
  • 2-point calibration
  • RS232 interface and Pt100 connection

Product impressions

Controller

The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

Read more

Temperature range 25...100
with cooling unit 15...100
with water cooling 20...100
Temperature stability ±0,02
Controller Pilot ONE
Safety class III / FL
Protection class IP20
Dimensions (W x D x H) 147 x 235 x 330 mm
Weight, net 5,5 kg

Heating capacity 1 - 1,5

Delivery capacity pressure pump max. 27 l/min; 0,7
Delivery capacity suction pump max. 22 ; 0,4 bar
Pump connection M16x1 AG male
Pump speed adjustable Yes
Pump characteristics Pressure and suction pump, variable speed

External sensor connection Pt100
Interface digital Ethernet, USB (Host u. Device), RS232

Permissible ambient temperature 5...40 °C
Bath opening WxD/BD ø = 25 / 150
Bath volume 3
Filling volume min. 2
Power supply 100-115V 1~ 50/60Hz
Current consumption max. 15
Fuse 15 A

Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.

Please observe the notes on installation and/or the space requirements of our products.

The following voltage and frequency tolerances apply based on EN60034-1:
Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%

Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.

We reserve the right to make technical changes and correct errors. Illustrations can deviate from the original.
